Specifications:
Type: Unmanned Aerial Vehicle (UAV)
Manufacturer: Dronnair Ltd.
Basic parameters:
Material: EPO, EVA, carbon fibre, engineering plastics

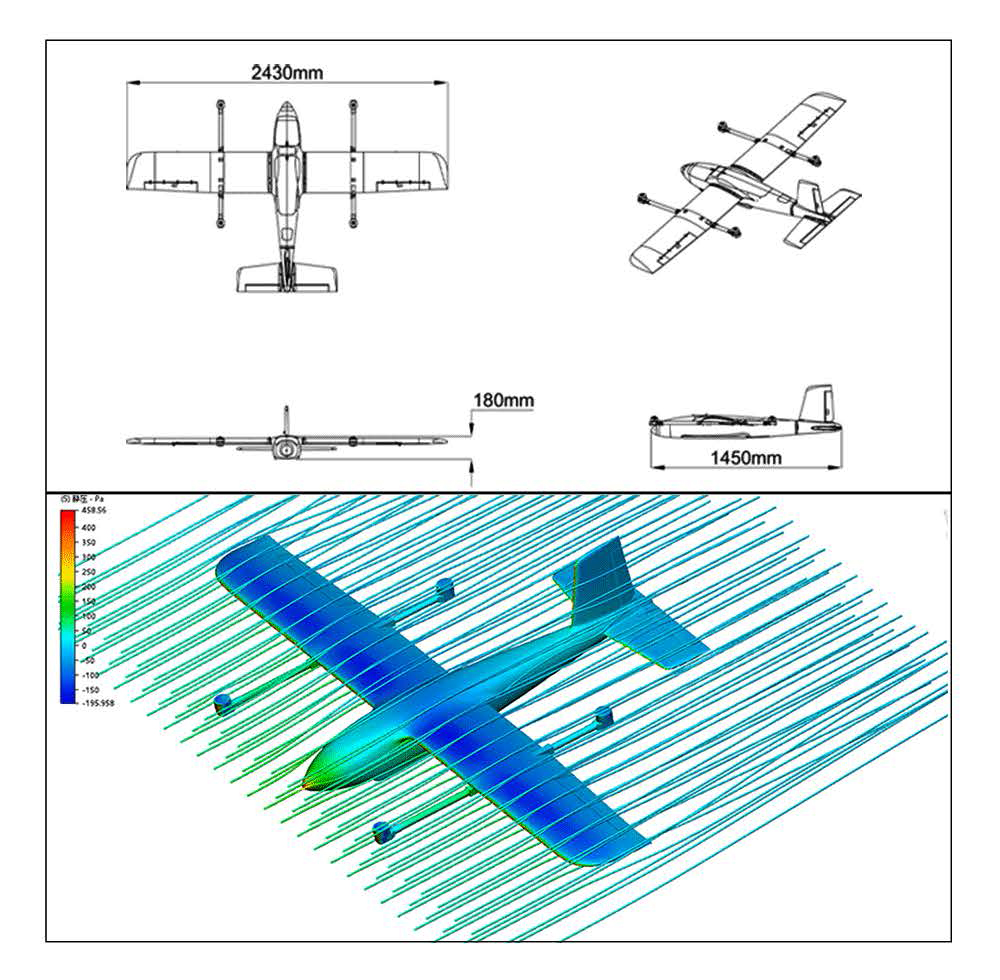

Wingspan: 2430mm
Fuselage height: 180mm
Fuselage length: 1450mm
Wing area: 72.5dm2
Payload:
Max. takeoff weight: 11.5kg
Max. payload: 1.5kg
Flight:
Take-off and landing mode: VTOL
Practical lift height: 4000m
Wind resistance: Class 5
Recommended flight speed: 19~20m/s
Stall speed: 10m/s (test conditions: altitude 500m, 10.5kg takeoff weight)
Maximum range: 150km (test conditions: Li-Po 12S 22,000mah, 0.6kg load)

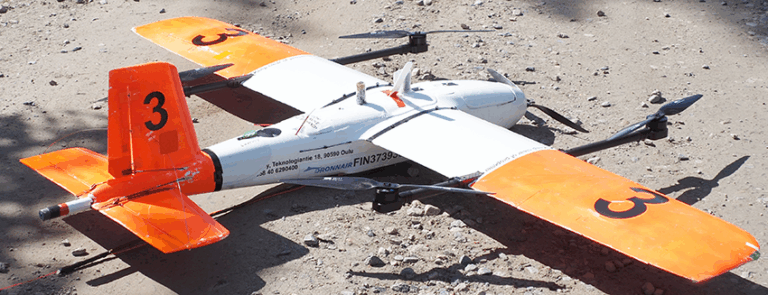

Model description
The Coot model is a versatile, lightweight UAV designed for commercial and industrial applications. It offers enhanced stability, efficient flight control systems, and is equipped with the latest technology in navigation and imaging. The drone is intended for use in a variety of sectors including aerial surveying, mapping, and inspection tasks. Its robust construction and reliable performance make it suitable for extended operations in diverse environmental conditions. The Coot UAV has been manufactured and tested by Dronnair Ltd. in compliance with industry standards. The drone has met all necessary requirements for operation under applicable regulations and is certified for use.
